Annotation-free genetic mutation estimation of thyroid cancer using cytological slides from multi-centers

Abstract

Thyroid cancer is the most common form of endocrine malignancy and fine needle aspiration (FNA) cytology is a reliable method for clinical diagnosis. Identification of genetic mutation status has been proved efficient for accurate diagnosis and prognostic risk stratification. In this study, a dataset with thyroid cytological images of 310 indeterminate (TBS3 or 4) and 392 PTC (TBS5 or 6) was collected. We introduced a multimodal cascaded network framework to estimate BARF V600E and RAS mutations directly from thyroid cytological slides. The area under the curve in the external testing set achieved 0.902 ± 0.063 and 0.801 ± 0.137 AUCs for BRAF, and RAS, respectively. The results demonstrated that deep neural networks have the potential in cytologically predicting valuable diagnosis and comprehensive genetic status.

Introduction

Thyroid cancer is one of the most prevalent malignancies of the endocrine system, and the incidence rate of thyroid nodules has increased significantly due to the improved capabilities of ultrasound detection [1]. The histopathology of thyroid cancer can be mainly classified as papillary thyroid carcinoma (PTC,70–90%), follicular thyroid carcinoma (FTC, 5–10%), anaplastic thyroid carcinoma (ATC, 2%) and medullary thyroid carcinoma (MTC, 2% <) [2]. The majority of PTC exhibit a favorable long-term prognosis with a 10 year survival rate of 96% after standard treatment, 5–10% of cases manifest as advanced disease with poor prognosis [3]. Hence, early precise diagnosis information holds extremely significance for patients in avoiding over- or under- treatment.

Currently, ultrasound-guided fine-needle aspiration (FNA) combined with liquid-based thin-layer cytology (TCT) is a reliable method for clinical identification of benign and malignant thyroid nodules [4]. It is suitable for the diagnosis of thyroid nodules with typical cytologic characteristic such as papillary, flat honeycomb sheet-like architecture, and pseudoinclusions [5]. However, using The Bethesda System (TBS), pathologists often feel confused when dealing with nodules exhibiting undistinctive cytologic features which are classified as indeterminate (TBS3: Atypia of undetermined significance or TBS4: Follicular neoplasmFollicular lesion of undetermined significance) [6]. With the constant innovation of diagnostic technology, molecular detection has integrated in the entire thyroid cancer diagnostic and treatment process. Genetic analysis of FNA samples can not only enhance the accuracy of preoperative cytological diagnosis, but also be used to predict the risk of invasiveness and provide decision-making information for thyroid nodule patients [7].

Genetic alternations in the two signaling pathways of mitogen-activated protein kinase (MAPK) and phosphatidylinositol 3-kinase (PI3K) have been identified responsible for the incidence and progression of thyroid cancer [8]. Notably, BRAF V600E mutation is observed in over 80% of PTC patients, followed by mutations of RAS (including NRAS, KRAS, HRAS) present in 10–15% of PTC. The mutations in BRAF or RAS genes activate the MAPK signaling pathway, facilitating the advancement and metastasis of thyroid tumors [9, 10]. In addition, studies have shown that BRAF V600E mutation is closely related to the reduced sensitivity of radioactive iodine treatment [11, 12]. RAS gene mutations are commonly observed in thyroid adenomas, underscoring their significance in the carcinogenesis of thyroid follicular cells [13].

The general procedure employed by genetic analysis including ARMS PCR, Sanger sequencing, next-generation sequencing, and high-performance liquid chromatography. ARMS PCR is relatively commonly used in clinical practice owing to its high sensitivity and specificity. However, its clinical application is limited by various factors such as strict requirements on laboratory and sample quality, time-consuming experimental steps, and scarcity of qualified staff [14].

With the rapid development of deep learning, many aritificial intelligence(AI)-assisted diagnostic systems have been developed for various tasks in tumor pathology, encompassing tumor classification, prognosis prediction, as well as genetic mutation estimation [15, 16]. In 2019, Guan et al. trained a deep convolutional neural network on cytological images for classification of PTC and Non-PTC [17]. Later in 2020, malignancy estimation of thyroid cytological lesions was reported [18, 19]. Furthermore, Anand et al. [20] and Xi et al. [21] introduced various AI-based diagnostic systerm for predicting BRAF mutation on H&E-stained slides and ultrasound images, respectively.

These methods have significantly improved the application extends of AI in thyroid pathology diagnosis. However, genetic mutation prediction from FNA slices of thyroid nodules, which can augment malignancy diagnosis in indeterminate group and imply prognostic risk in PTC group, is still very challenging. To enhance the clinical utility of identifying genetic status, we proposed a multimodal cascaded deep convolutional framework to sequentially classify informative cellular regions and estimate genetic mutations (i.e., BRAF and RAS) on the WSIs. The proposed framework consists of a few-shot region classifier and a multimodal mutation classifier, which significantly reduces the need for manual annotations while maintaining a high level of classification generalization capability. The main contributions of this study are as follows:

• We proposed a multimodal cascaded deep convolutional framework to to sequentially detect informative cellular regions and estimate genetic mutations using FNA slices.

• We introduced a few-shot learning strategy which significantly reduces the number of annotations required for training region classifier while maintaining high classification accuracy.

• We further analyzed the effectiveness of the number of features selected for ensembling to understand its effects on the performance and stability of deep convolutional networks.

The rest of the paper is organized as follows: Firstly, we presented the datasets and methods used for this research in “Materials and methods” section. Then, we illustrated the quantitative and qualitative results in “Results” section. Finally, discussion and conclusion were presented in the “Discussion” section.

Materials and methods

Data

The cytology slides (Thin Prep, Papanicolaou stained) of 702 distinct thyroid nodules were obtained from the Department of Pathology, the Eighth Affiliated Hospital of Sun Yat-sen University (596/702) and the Department of Pathology, the Second Affiliated Hospital of Guangzhou Medical University (106/702) (The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board with protocol code 2024d013). Among the 310 indeterminate and 392 PTC nodules collected in this study, 58(18.7%) and 351(89.5%) BRAF V600E mutations were found respectively. Besides, we detected 43 (13.9%) and 9 (2.3%) RAS mutations in 310 indeterminate and 392 PTC nodules respectively. All cytology slides were diagnosed by four expert pathologists. Each cytologic sample was separated after mixing, with one half used for the creation of liquid-based cytology slides for microscopic diagnosis, and the other half employed for the generation of cell wax blocks as specimens for subsequent genetic testing. The Amplification Refractory Mutation System-polymerase chain reaction method was used to detect the mutation status of BRAF V600E, KRAS G12C/G12V/Q61R, NRAS Q61R, and HRAS Q61R, following the protocols provided by the manufacturer (Mole Bioscience Co. Ltd., Jiangsu, China). All the 702 slides were scanned with 20x magnification ratio by PANNORAMIC 1000, 3DHISTECH (https://www.3dhistech.com/research/pannoramic-digital-slide-scanners/pannoramic-1000/). To facilitate cell cluster detection, binary masks of cell areas of the WSIs were carefully annotated by experienced pathologists using QGIS (v3.22.7 LTR, https://qgis.org/).

As shown in Table 1, 702 WSIs of patient nodules were splitted into training, validation, and external testing sets. In our experiment, the size of each tile was fixed to 512 $\times$ 512 pixels.

Table 1 Distribution of patient nodules and corresponding clinical information

Methodology

In this study, we proposed an annotation-free cascaded deep learning pipeline to sequentially detect informative cellular regions and then estimate the somatic gene mutations from the thyroid cytology whole-side images.

As shown in Fig. 1, the experimental workflow is consisted of three parts: (a) whole-slide image preprocessing to cut it into image patches and filter out white noise or background (b) few-shot region classification to determine informative and non-informative cellular regions (c) multimodal genetic mutation classification to estimation mutation type for each tile. Following preprocessing, a limited subset of image patches exhibiting varying abundances of follicular cells-encompassing both informative and non-informative categories-will undergo few-shot region classification. Subsequently, the well-trained region classifier will serve to exclude image patches that lack follicular cells. Only those informative patches will be retained for the training and evaluation of the multimodal genetic mutation classification, ensuring that the model is trained on relevant, cellularly informative data.

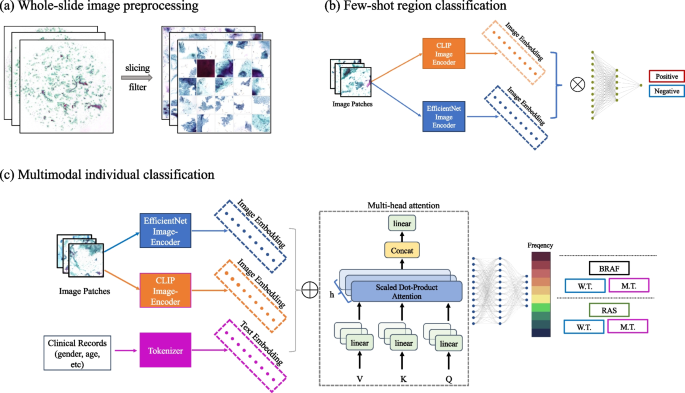

Fig. 1

Experimental workflow. a Whole-slide image preprocessing b Few-shot image patch classification for estimating informative and non-informative cellular regions c Multimodal genetic mutation classifier for tile-level somatic gene mutation estimation

WSI preprocessing

At data preprocessing, the 702 pairs of whole-side images (WSIs) and their corresponding clinical records were distributed to three groups: training (485), validating (111), and testing (106). A 512 $\times$ 512 square window was applied to the whole-side image to generate image tiles. To avoid interfering of blank backgrounds and dark noises, a simple threshing strategy was applied to filter all tiles with average pixel values $\le$ 10 or $\ge$ 240. As shown in Table 1, there were 1 245 999, 422 517, and 450 574 image tiles within the corresponding training, validating, and testing set.

Few-shot classification

In ultrasound-guided FNA, only a small portion of cells will be taken from patient nodules which usually leads to a relatively sparse distribution of cellular clusters within a whole-slide image. Before any diagnostic classification or gene mutation estimation, it’s vital to detect and classify the informative cellular regions. Other than existing researches [16] which manually annotated all region of interests (ROIs), we introduced a few-shot training strategy, which learn from limited annotation data while maintaining good generalization capability, that significantly reduced human labor and speed-up the entire experimental workflow.

As shown in Fig. 2, a small subset (15 / 516) WSIs within internal set were annotated by experienced pathologist and then applied for training (i.e., 10 WSIs) and validating (i.e., 5 WSIs) the few-shot cellular region classifier.

Fig. 2

Sampled Whole-slide image from SYSU8H-Thyroid dataset. a The whole-side-image (WSI) b Non-annotated negative patches within WSI c Annotated positive patches within WSI

For better generalization capability, the region classifier was composed of a fixed CLIP (Contrastive Language-Image Pretraining) [22] image encoder, a learnable EfficientNet [23] image encoder, and a fully-connected (FC) layer. The CLIP model introduced a contrastive pre-training scheme which bridges image and text description of a specified scene. After training with large-scale paired image-text dataset, the CLIP can serve as a robust zero-shot image encoder. Other than CLIP, we chose EfficientNet, a classic model architecture designed to produce high accuracy under limited computational operations, as the learnable image encoder which can gradually adjust its parameters during every iterations. As shown in Table 2, we chose an ImageNet-1K [24] pretrained EfficientNet B0 (https://pytorch.org/vision/master/models/generated/torchvision.models.efficientnet_b0.html) as the network backbone.

Table 2 The backbone network of EfficientNet. Each row describes the stage, operation, input resolution, output channel, and the number of layers

The final FC layer taken two encoded features of CLIP and EfficientNet as input to generate output ($x_{i}$). As a binary classification task, we adopted sigmoid function to generate final prediction ($p_{i}$) and L1 loss as object function.

$$\begin{aligned} p_{i} & = {\frac{1}{1+e^{-x_{i}}}} \nonumber \\ Loss_{L1} & = \frac{1}{n} \sum \limits _{i=1}^{n} |y_{i} - p_{i}| \end{aligned}$$

(1)

Where ${p_{i}}$ and ${y_{i}}$ was the ${i^{th}}$ prediction and corresponding ground truth. The ranges of prediction ${p_{i}}$ and ${y_{i}}$ were limited to [0, 1].

With all of the above layers being trained by mini-batch stochastic gradient descent (SGD) [25] to minimize the L1 loss, the classifier learned to make category prediction on every 512x512 image patches of the SYSU8H-Thyroid dataset. The image tiles with high probability of being a informative region of training and validation set were subsequentially used for training and validating the multimodal classifier to discriminate wild type (i.e., W.T.) vs. mutant type (i.e., M.T.) of target somatic genes (i.e., BRAF and RAS), respectively. To ensure the high fidelity of selected tiles, a high threshold (i.e., 0.75) was used to filter out tiles with a low probability of being an informative cellular region.

Multimodal classifier

Similar to few-shot region classifier, our proprosed multimodal classifier consisted of three encoders, a multi-head attention module, and two FC layers. In addition to image encoders, we adopted a tokenizer (https://github.com/mlfoundations/open_clip) to convert text clinical records (e.g., gender of female, age of 44) to a 1024 $\times$ 1 vector. The multi-head attention module, which was firstly proposed by Ashish et al. [26] in 2017, is able to capture complex relationships in data and adapt to varying context. The equation for multi-head attention can be formulated as follows:

$$\begin{aligned} \text {MultiHead}(Q, K, V) & = \text {Concat}(\text {head}_1, \ldots , \text {head}_h) \cdot W_O \nonumber \\ \text {head}_i & = \text {Attention}(Q \cdot W_{Qi}, K \cdot W_{Ki}, V \cdot W_{Vi}) \nonumber \\ \text {Attention}(Q, K, V) & = \text {softmax}\left( \frac{QK^T}{\sqrt{d_k}}\right) \cdot V \end{aligned}$$

(2)

Here, Q, K, and V represented the query, key, and value matrices, respectively. $W_{Qi}$, $W_{Ki}$, and $W_{Vi}$ were learnable linear transformation matrices for each attention head. $W_{O}$ was the output transformation matrix. $d_{k}$ was the dimension of the key vectors.

The output of muli-head attention module was passed to two FC layers to generate multi-class predictions (X).

$$\begin{aligned} p_{i} = \frac{e^{x_i}}{\sum \limits _{j=1}^{N} e^{x_j}} \end{aligned}$$

(3)

where $x_{i}$ and N was an element and number of elements in the input vector X, respectively.

Instead of L1 loss, we adopted categorical cross-entropy loss [27] as our object function to address multi-class classification. The equation can be formulated as:

$$\begin{aligned} Loss(y, p) = -\frac{1}{N} \sum \limits _{i=1}^{N} \sum \limits _{j=1}^{C} y_{ij} \cdot \log (p_{ij}) \end{aligned}$$

(4)

Where p and y was the predicted probability distribution and corresponding ground truth. The i, j, and C represented sample, class indice and the number of classes, respectively.

To make a decisive conclusion on the whole-slide image (WSI) using the separated predictions of tiles, we adopted a frequency histogram to convert tile-level predictions to WSI instance-level probability. For each WSI, the probability ($p_{wsi}$) can be calculated by the following equations.

$$\begin{aligned} Histogram & = [f1, f2, f3, ..., fn] \nonumber \\ p_{wsi} & = ARGMAX(Histogram) / n + MAX(Histogram) * 0.1 / n \end{aligned}$$

(5)

The n represented the number of bins within range[0, 1]. Finally, the ${p_{wsi}}$ and corresponding ground truth (${y_{wsi}}$) were used to compute the area under the receiver operator characteristic (ROC) curve [28] and its confidence interval (CI) [29] for performance estimation.

$$\begin{aligned} \text {ROC-AUC} = \int _{0}^{1} \text {TPR}(FPR^{-1}(t)) \, dt \end{aligned}$$

(6)

The TPR and FPR represent true positive rate (sensitivity) and false positive rate (1-specificity) at various threshold (t) settings.

After repeating several times of the training and validation procedures, the hyperparameters, including batch size, the number of epochs, and learning rate, are optimized with the Adam stochastic optimizer [30]. Subsequently, the predictions generated by the optimized models were evaluated using the WSIs of the testing set (see details in Table 1).

Results

Few-shot region classification

The probability maps generated by the few-shot region classification models using tiles of the WSIs are depicted in Fig. 3. Within each sample (i.e., a and b), as the predicted probability decreases (from top to bottom), the presence of informative cell clusters in each row of tiles gradually diminishes. As the predicted probability ranges between 0.75 and 1.00, the majority of tiles contain valid diagnostic cells (i.e., 1st row). However, the predicted probability falls between 0.50 and 0.75, only a few tiles contain partial valid diagnostic information (i.e., 2nd row). When the predicted probabilities are $\le$ 0.50, the tiles essentially lack of diagnostic information (i.e., 3rd and 4th rows). To ensure the reliability of the selected tiles, only those predicted with high probability (i.e., 0.75 to 1.00) are chosen for further training and validating the following genetic mutation estimation models.

Fig. 3

Probability maps of informatic region classification using tiles of the whole slide images (WSIs). From left to right: the whole-side image; the predicted probability map over WSI; the zoom-in tiles with various probability ranges. a, b, and c are randomly sampled cases

Multimodal genetic mutation estimation

After model ensembling, the proposed method generated probability of gene mutations (i.e., BRAF and RAS) of every WSI.

As shown in Fig. 4a, in BRAF mutation estimation task, the proposed method reached 0.938 (95% CI of 0.917–0.960), 0.905 (95% CI of 0.849–0.962), and 0.902 (95% CI of 0.839–0.965) AUCs in training, validation, and external testing set, respectively. In Fig. 4b, our method also displayed high accuracy in RAS mutation estimation task. The AUCs of training, validation, and external testing sets reached 0.881 (95% CI of 0.812–0.951), 0.802 (95% CI of 0.621–0.984), and 0.801 (95% CI of 0.663–0.938). Compared with RAS mutation estimation, the proposed method present higher accuracy and stability in BRAF mutation estimation.

Fig. 4

The receiver operator characteristic (ROC) curve and corresponding area under the curve (AUC) of genetic mutation estimation of the whole slide images (WSIs). a The ROC curves of BRAF mutation estimation b The ROC curves of RAS mutation estimation

In order to investigate the relationship between image features and gene mutations, we selected two representative cases of BRAF and RAS mutations, respectively.

As shown in Fig. 5, the whole slide image (WSI) and the corresponding tiles of different BRAF mutation probabilites were displayed. The tiles with high probabilities of being BRAF mutant type were listed on top of Fig. 5c.

Fig. 5

Representative tiles of BRAF mutation a The whole slide image. b The histogram of tile-level predictions within the WSI. c The zoom-in tiles with various probability ranges

As shown in Fig. 6, the whole slide image (WSI) and the corresponding tiles of different RAS mutation probabilites were displayed. The tiles with high probabilities of being RAS mutant type were listed on top of Fig. 6c.

Fig. 6

Representative tiles of RAS mutation. b The histogram of tile-level predictions within the WSI. c The zoom-in tiles with various probability ranges

Discussion

Regarding the proposed framework

Previous studies have shown the capacity of deep learning models not only for thyroid cancer diagnosis but also for predicting genetic mutations based on diverse medical images. Most current researches focus on classifying thyroid nudules as benign or malignant according to the histological diagnosis by CNNs [17,18,19]. Anand et al. developed a deep neural network that predict BRAF V600E mutational status from thyroid cancer H&E slides [20]. Wang et al. implemented a deep learning based on a dataset of 118 PTC cytologic WSIs to predict BRAF V600E mutation [31]. Considering the significance of providing as much valuable clinical information as possible to patients with thyroid nodules before surgery, in the present study, we firstly employed a DNN model to complete comprehensive genetic prediction within different diagnostic cytology slides. Our method employed a few-shot learning strategy, significantly reducing the need for manual annotations while maintaining a high level of classification generalization. The utilization of deep convolutional networks for estimating gene mutations (BRAF and RAS) offers pathologists a more convenient means to assess risk and guide treatment.

Accuracies, uncertainties, and limitations

Qualitative and quantitative assessments on the internal validation set, our model achieved 0.905 ± 0.056 and 0.802 ± 0.181 AUCs for BRAF, and RAS, respectively. Similarly, our method kept high accuracy in the external testing set, showing 0.902 ± 0.063 AUC of BRAF and 0.801 ± 0.137 AUC of RAS. Compared with BRAF mutation estimation, our method has encountered challenges in distinguishing between wild type and mutant types of RAS due to a relatively biased data distribution (i.e., 5.7%–9.0% W.T. in the training, validation and testing set). Due to the data-driven nature of deep learning models, a substantial quantity of positive samples is typically necessary for effective model training. Consequently, it is imperative to consider the reliability of the numerical values associated with the limited positive sample size of RAS mutants.

The occurrence and progression of PTC is a complex, multifactorial process. Among the various genetic alterations, the BRAF V600E and RAS Q61R mutations are two prevalent mutations associated with PTC. Notably, the BRAF V600E mutation exhibits an almost 100% specificity for the diagnosis of PTC, making it a critical marker in clinical settings. Consequently, this study focuses exclusively on the detection and prediction of these two hotspot mutations. It is crucial to highlight that even in the absence of BRAF V600E and RAS Q61R mutations, other genetic abnormalities, such as RAS Q61K, RET and NTRK fusions, although less common, can also play a key role in the pathogenesis of PTC [32]. In this study, cases with undetected non-hot-spot mutations or fusions may have been incorrectly classified as wild-type, potentially skewing the true prevalence of BRAF-like and RAS-like phenotypes in the dataset. The heterogeneity of the wild type group, which may include cases with undetected mutations, could introduce variability into the results and reduce the model’s overall accuracy. We propose incorporating comprehensive genomic profiling to capture a wider range of mutations and fusions in future studies. This would enable a more accurate classification of cases and improve the robustness of the findings.

Within our cascaded classification pipeline, the models were trained to generate tile-to-label predictions using multimodal feature encoders. However, the absence of internal connectivity with adjacent tiles within the same WSI may result in inconsistent predictions among tiles (e.g., predicting PTC for tile A and AUS for tile B). Additionally, as the region classifier and multimodal models were trained and optimized separately, the proposed framework necessitates extra computational time and storage for training, saving checkpoints, and interferring. To enhance computational efficiency, further work should explore a unified model with shared parameters and objective functions.

To thoroughly assess the effectiveness and generalization of the proposed method, further evaluation using a larger dataset that encompasses more clinical centers, racial diversity, and genetic alterations is essential.
